Tires



TRAILSTAR tires are competitively priced. We'll be glad to supply a quote and take your order at 903-886-4067 Monday through Friday, 8 a.m. to 5 p.m.

Printable Catalog


- ST RADIAL TIRES


HT RADIALS
 by

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
ST175/80R13
LRC
6
23.8
7.0
1360
50
ST185/80R13
LRD
8
24.4
7.4
1710
65
ST205/75R14
LRC
6
25.9
7.9
1760
50
ST205/75R15
LRC
6
26.9
8.2
1820
50
ST225/75R15
LRE
10
28.2
9.0
2830
80
ST235/80R16
LRE
10
30.6
9.3
3520/3080
80
ST235/85R16
LRF
12
31.8
9.4
4000/3520
110
ST235/85R16 LRG 14 31.8 9.4 4000/3520 110

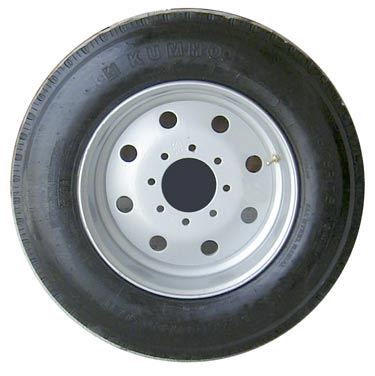

Click for larger image




HT ALL STEEL RADIAL
by

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
235/85R16
LRG
14
30.6
9.3
4000/3750
110

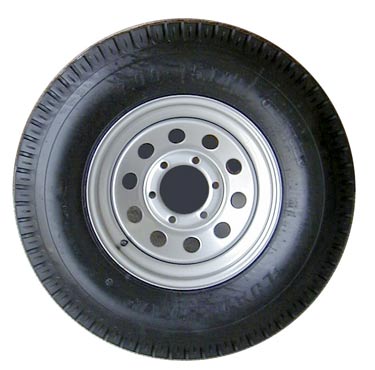

Click for larger image



TRAILFINDER TSM96 ALL STEEL

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
215/75R17.5
LRH
16
30.2
8.3
4805/4540
125
235/75R17.5 LRJ 18 31.4 9.17 6005/5675 125




HT RADIALS  by



Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
ST205/75R15
LRC
6
26.85
7.76
1820
50
ST225/75R15 LRD 8 27.99 8.50 2540 65
ST235/80R16 LRE 10 30.43 8.98 3520/3080 80




- MEDIUM TRUCK RADIAL TIRES

Click for larger image



TRIANGLE TR-656 ALL STEEL

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
255/70R22.5
140/137
16
36.6
10.1
5,510/5,070
120

Click for larger image



TRIANGLE TR-677 ALL STEEL

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
11R22.5
143/139
16
41.5
11.5
6610/6005
120
11R24.5
146/143
16
42.9
11.5
7160/6610
120
- TRAILER BIAS TIRES

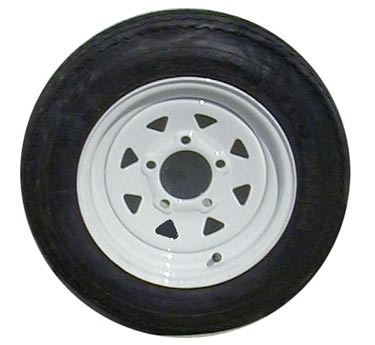

Click for larger image

 P-811  by

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
4.80-12
LRB
4
20.5
4.6
780
60
5.30-12
LRC
6
21.5
5.5
1045
80

 P-825  by

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
205/65-10
LRD
8
20.50
8.0
1320
70

QH-505 by

Size
Load Range
Ply Rating
OD
SW
Max Load (lbs.)
PSI (lbs.)
7.00-15
LRE
10
29.50
7.90
2335
80
7.50-16
LRE
10
33.50
8.50
2780
75

All*STAR XL by

Size
Load Range
Ply
Rating
OD
SW
Max
Load (lbs.)
PSI (lbs.)
ST175/80D13
LRC
6
24.41
6.8
1380
50
ST205/75D14
LRC
6
26.14
7.9
1760
50
ST205/75D15 LRC 6 26.97 8.0 1820 50
ST225/75D15 LRD 8 28.70 8.4 2540 65

Click for larger image

 H-188 by

Size
Load Range
Ply
Rating
OD
SW
Max
Load (lbs.)
PSI (lbs.)
ST205/75D15
LRC
6
26.97
8.0
1820
50
ST225/75D15
LRD
8
28.70
8.4
2540
65

Click for larger image

  by

Size
Ply Rating
OD
SW
Max
Load (lbs.)
PSI (lbs.)
9.5L-15 I-1
8
30.70
9.4
2470
44
11L-15 I-1
8
31.90
11.0
2540
36
